What is the lowbed semi trailer?
Lowbed semi trailer also be named lowboy trailer, low loader traier, dropdeck trailer, Low deck trailer.
Low loader trailer is the most classic type of low deck and heavy haulage, and all the other lowbed trailers like RGN trailer,Folding neck trailer , extendable lowbed trailer are designed based on the original feature of conventional lowbed trailer.
Gooseneck,long cargo platform, the rear end with whell and ramp, the three parts are the main structure of low loader.
The gooseneck front part with traction pin is used to connect the traction saddle on the tractor/truck head. and the end of gooseneck connect the low cargo platform. The gooseneck design can make sure the low cargo plateform can be connected with the end of high truck head.

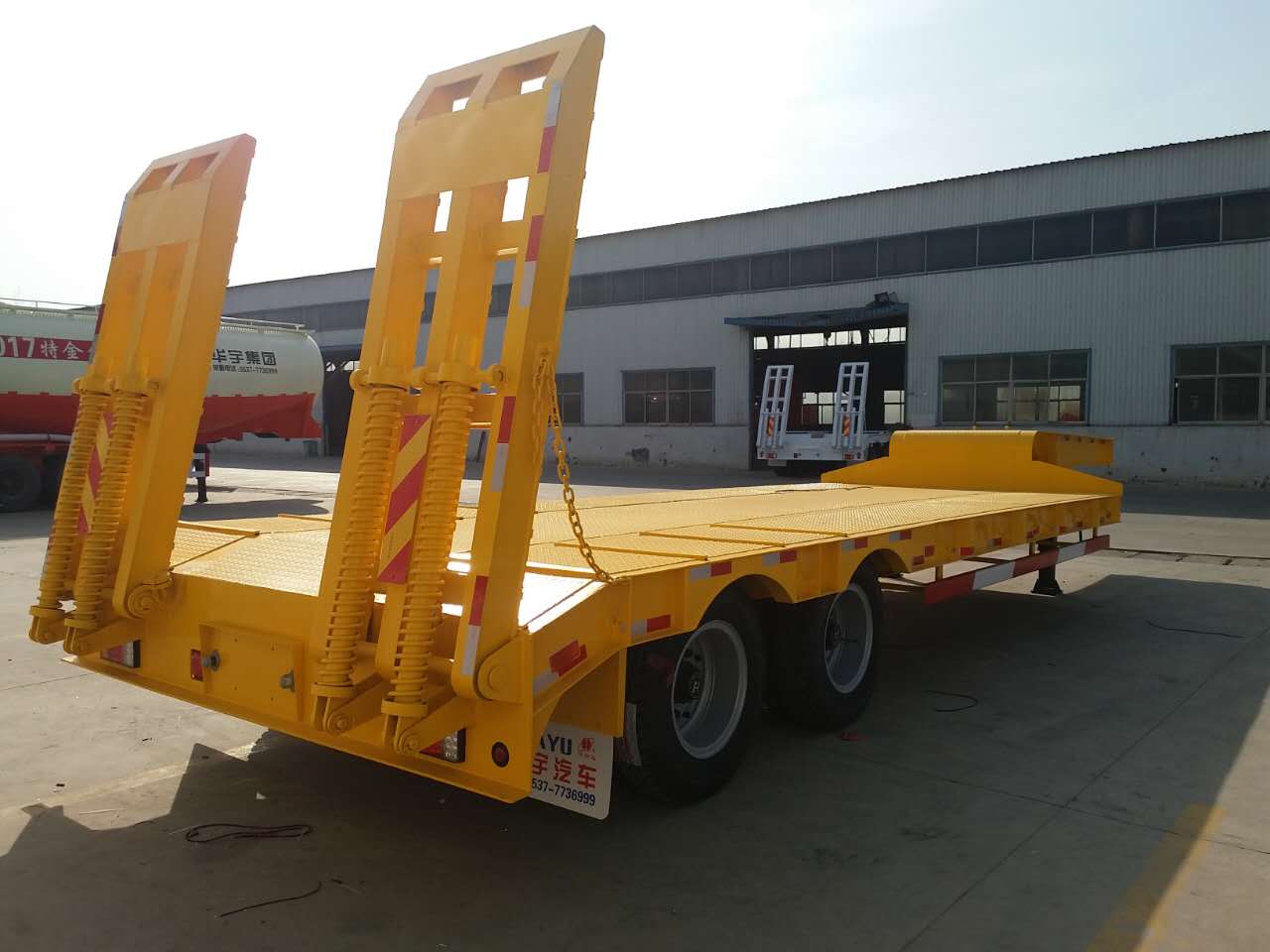

Machine equipment can be moving on the cargo platform by the ramp on the end.
Ultra-low deck,long cargo platform, heavy haulaging are the common features of lowbed trailer.
What types of low bed trailer
The loading capacity of low deck will be the main point to design the lowbed trailer. the mainly design is one line one axle or one lone two axle to meet different capacity 20-150 tons.
one line one axle has 2 axle lowbed, 3 axle lowloader,4 axle lowdeck trailer
One line two axle has 2 line 4 axles, 3 line 6 axle,4 line 8 axles
What low bed trailer can transport ?
The low bed trailer are widely used to transport overweight and oversize cargo and machinery.
The large machine like excavators,rollers,cranes,mining machine,forestry machine,agriculture machine, etc.
The large cargo like windmill blade, mechanical equipment, over szie tanker, Three phase separator, hull etc.

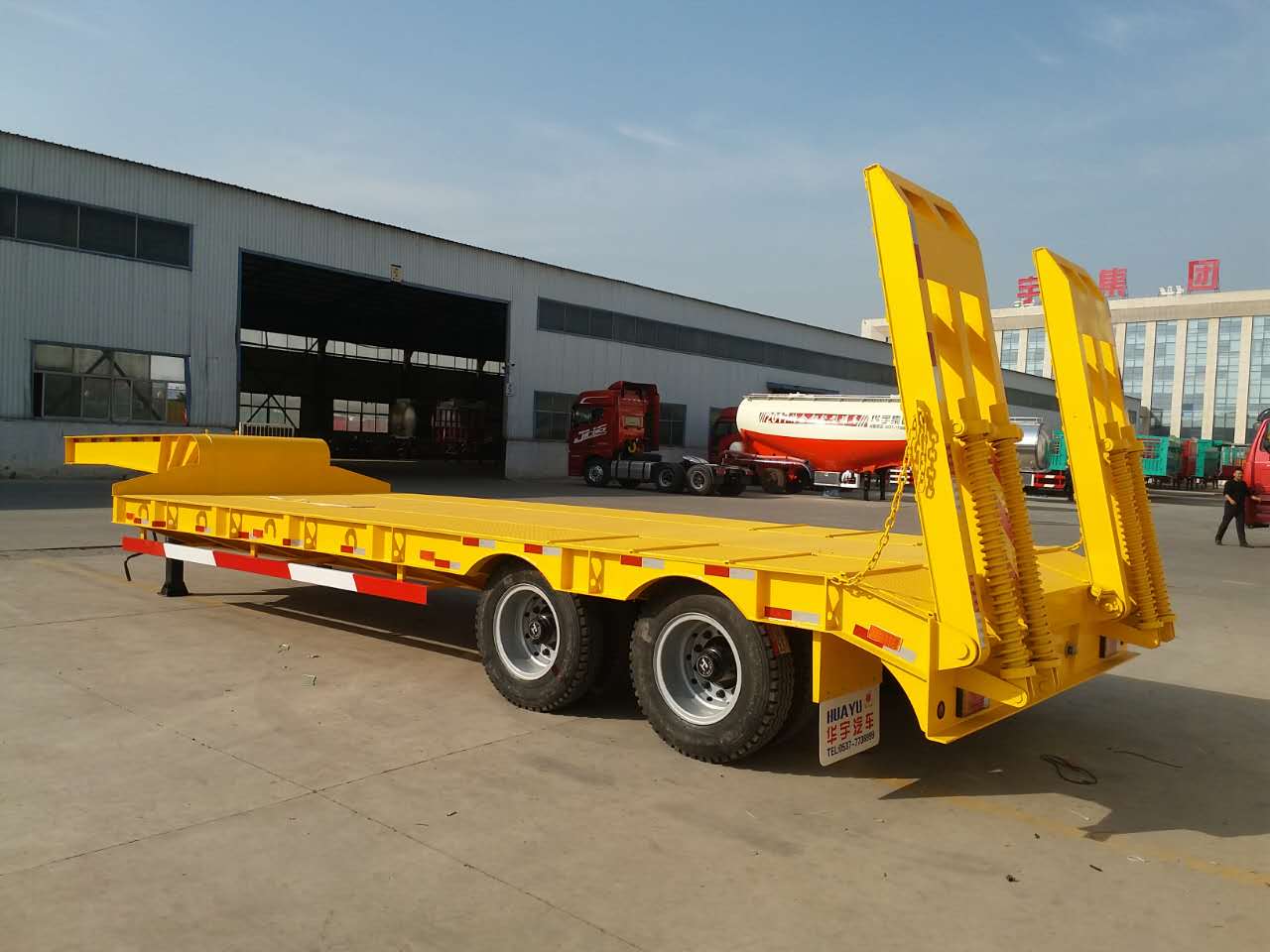

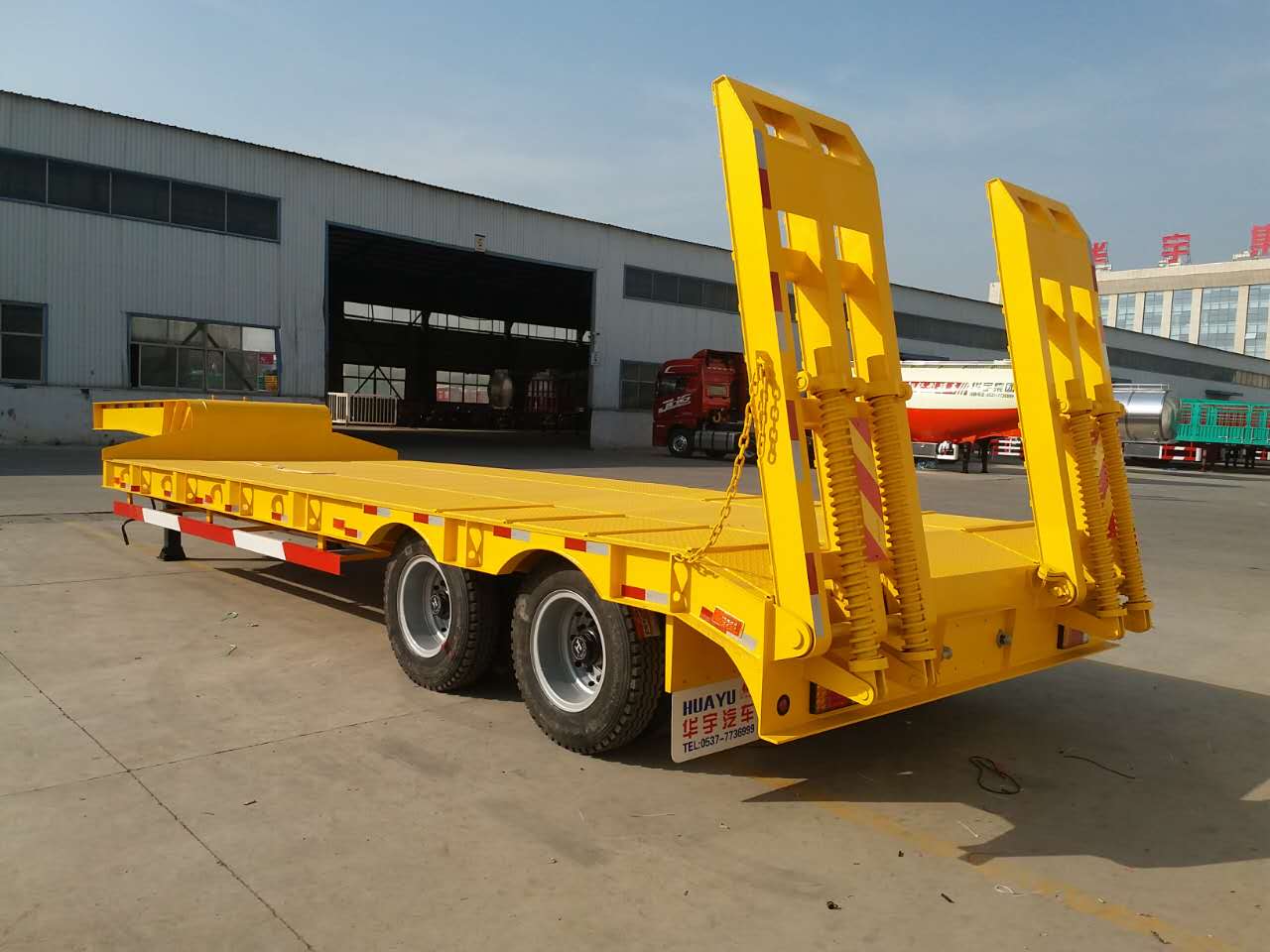

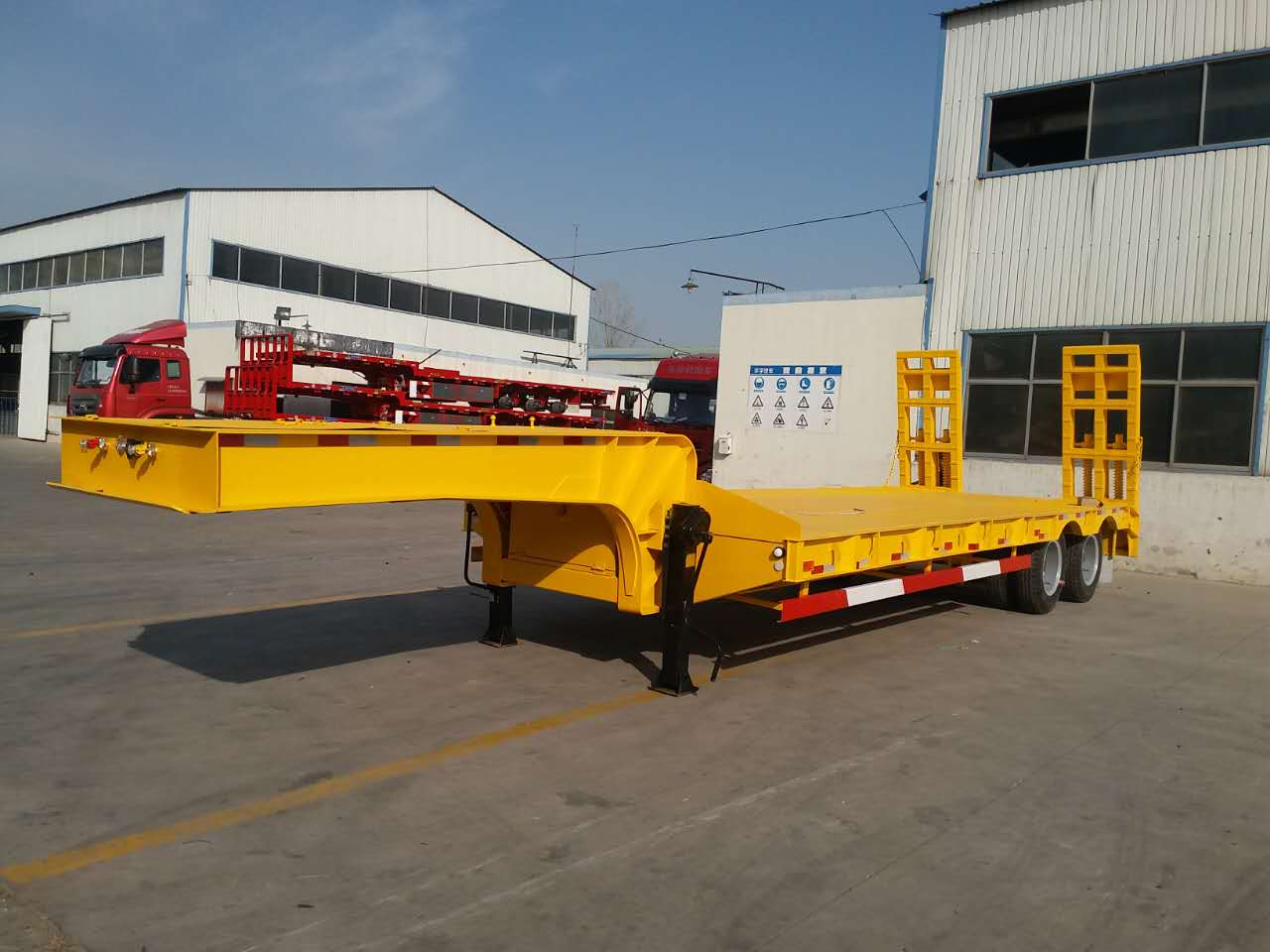

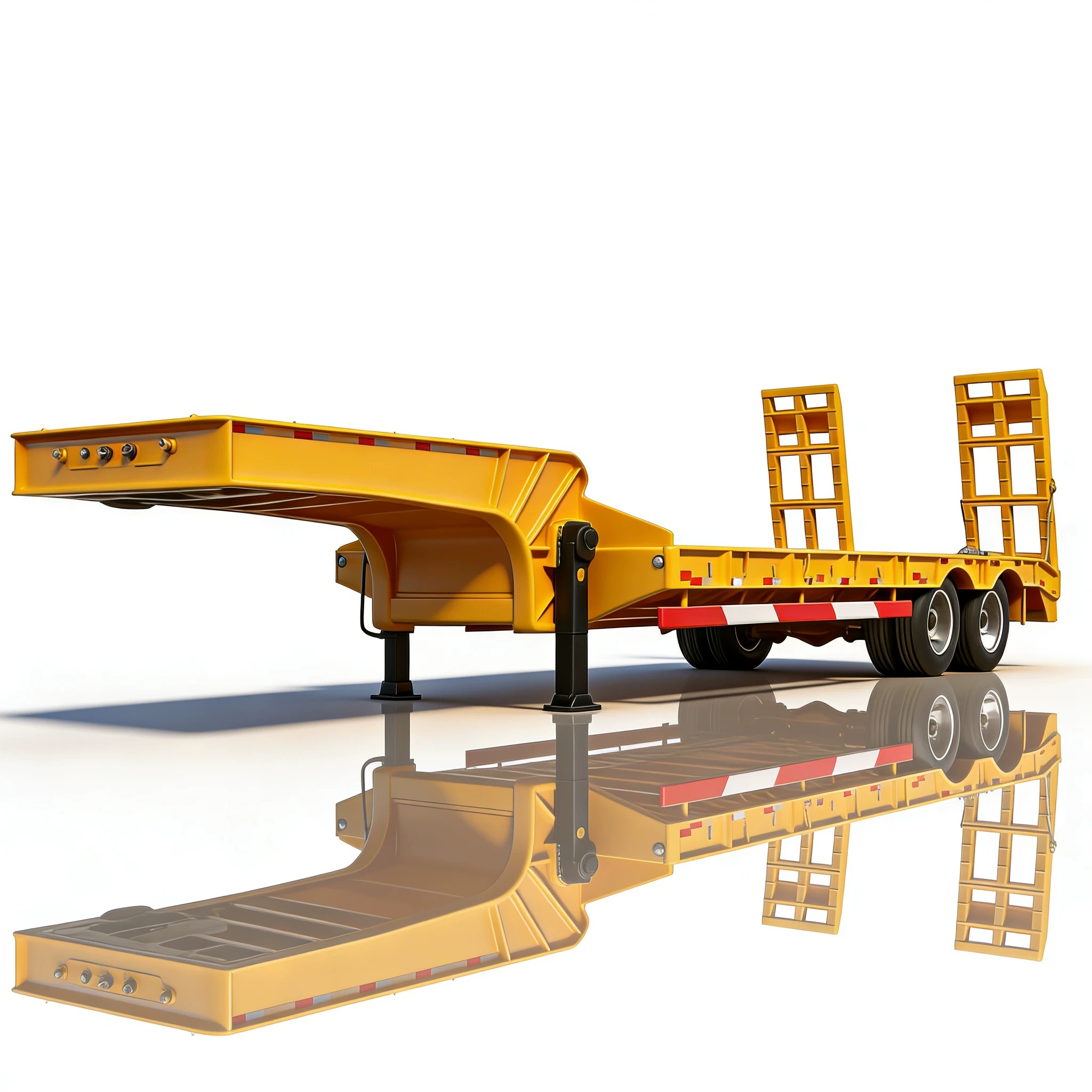

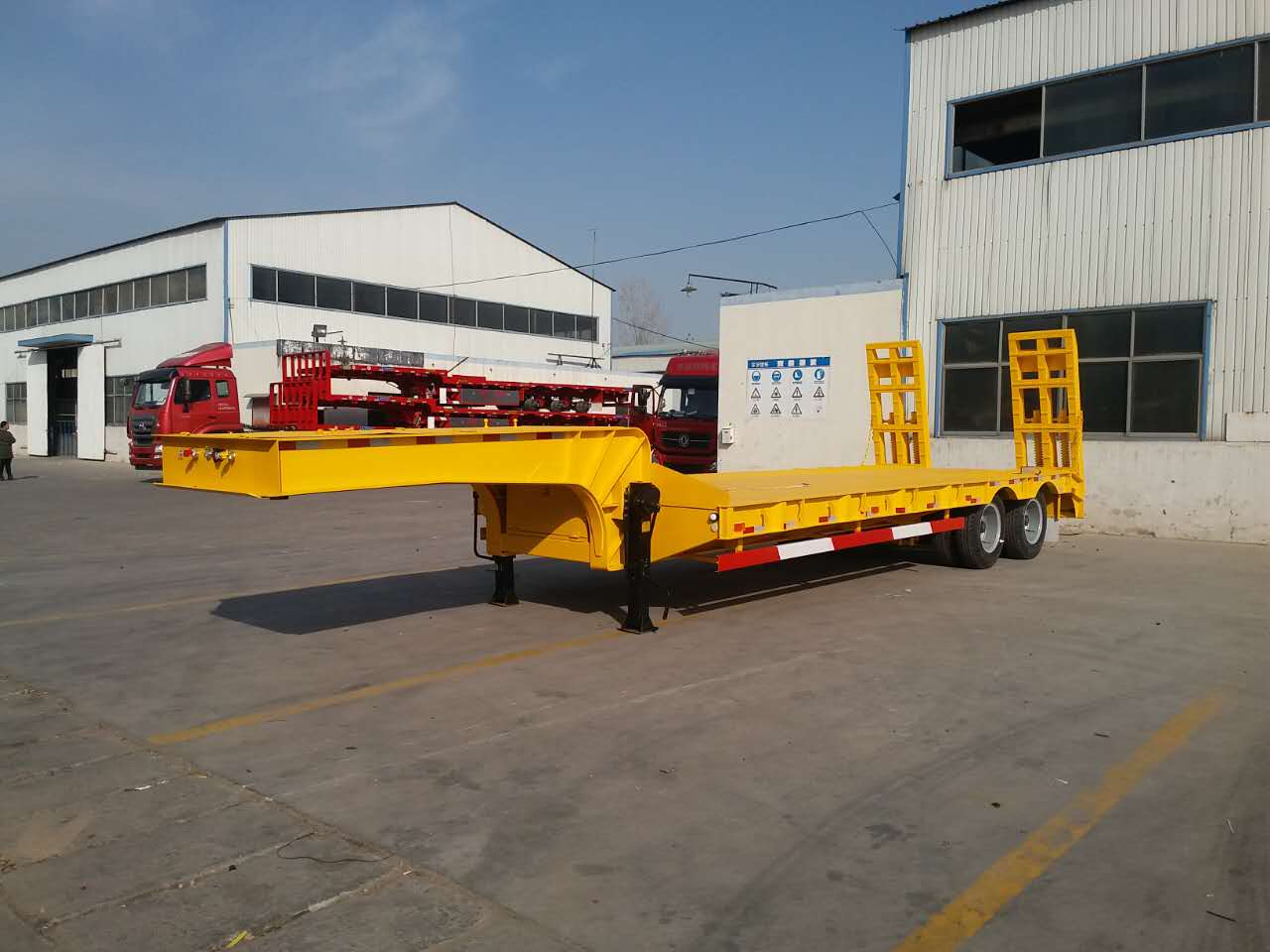

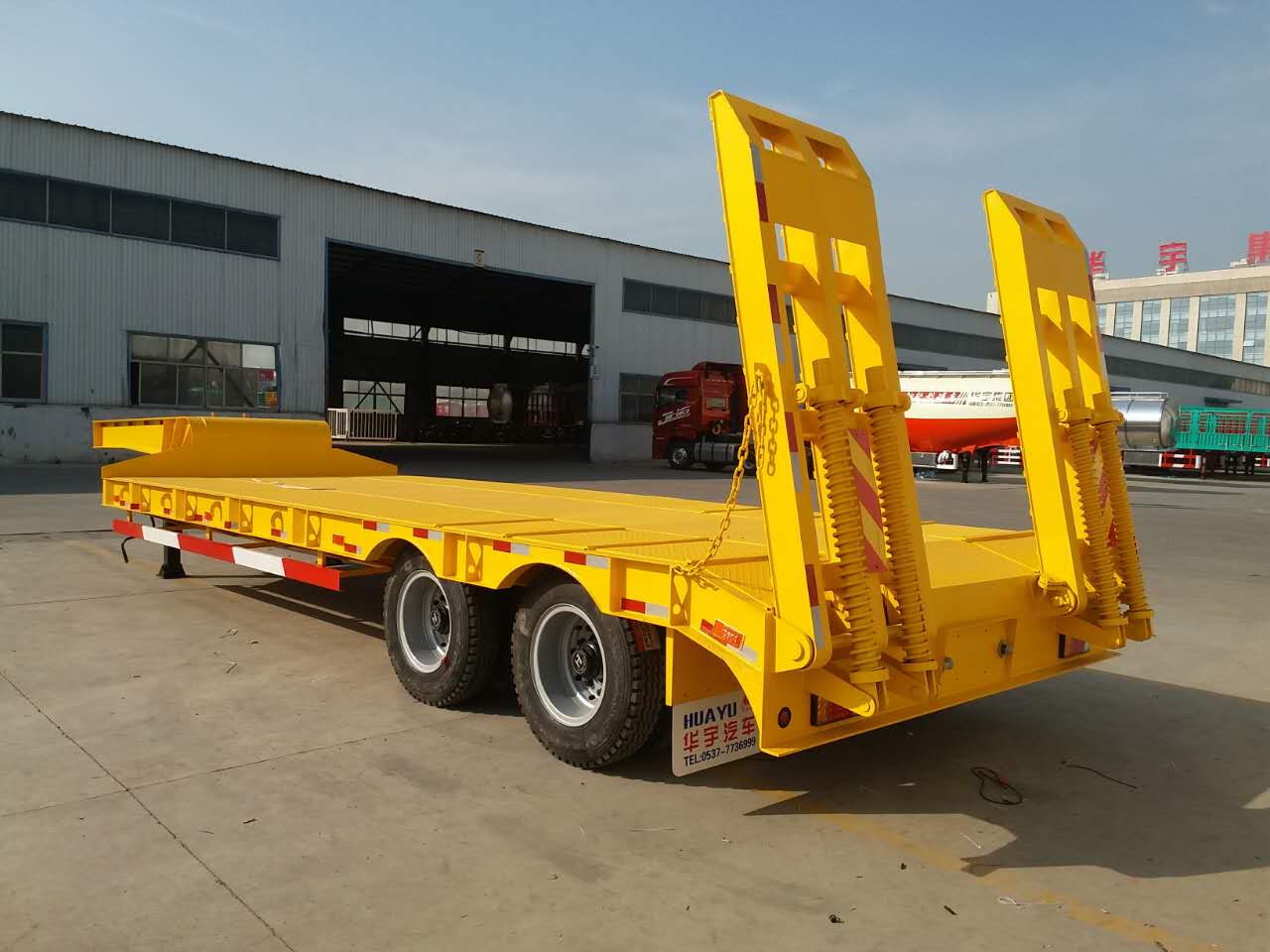

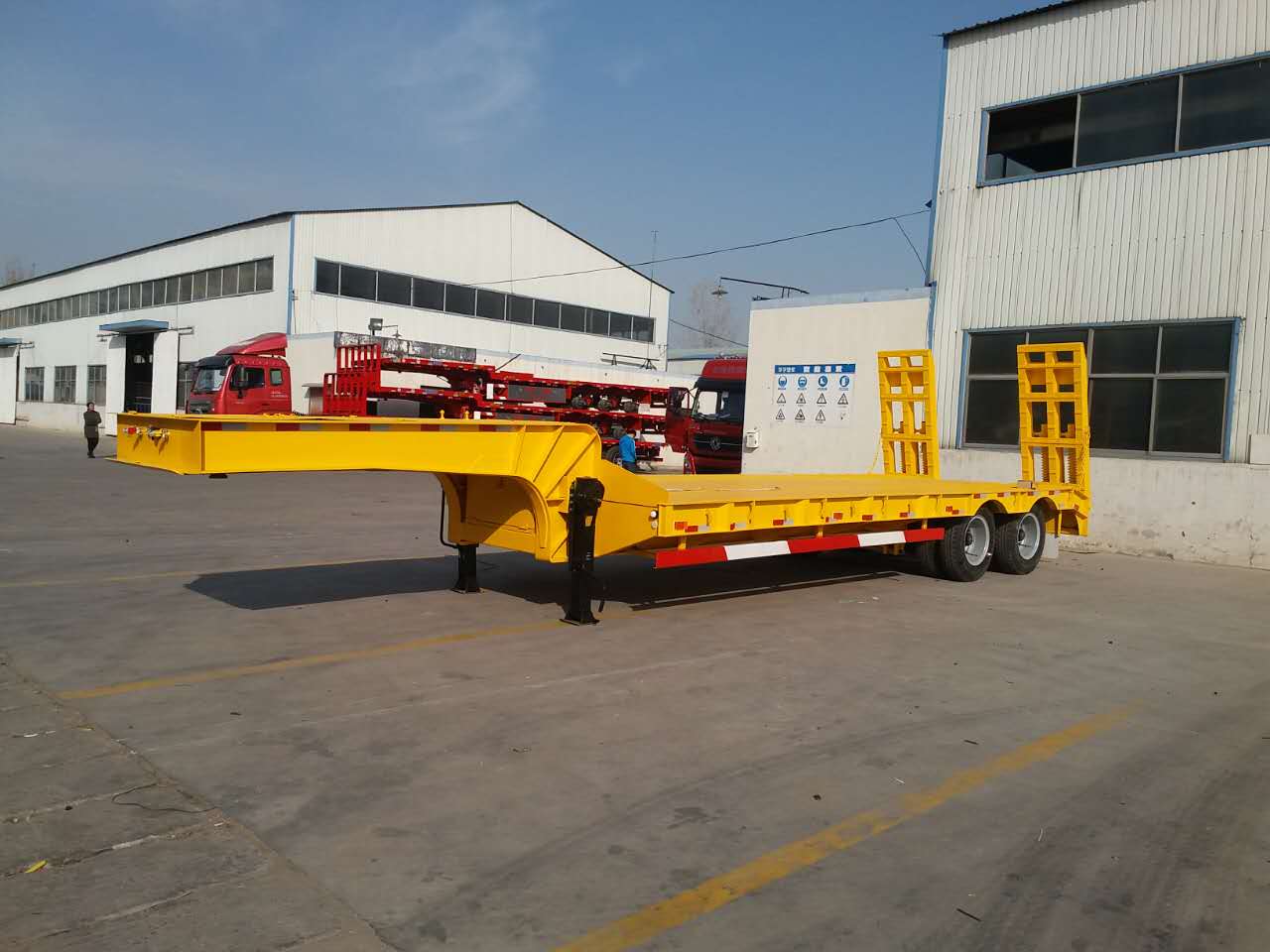

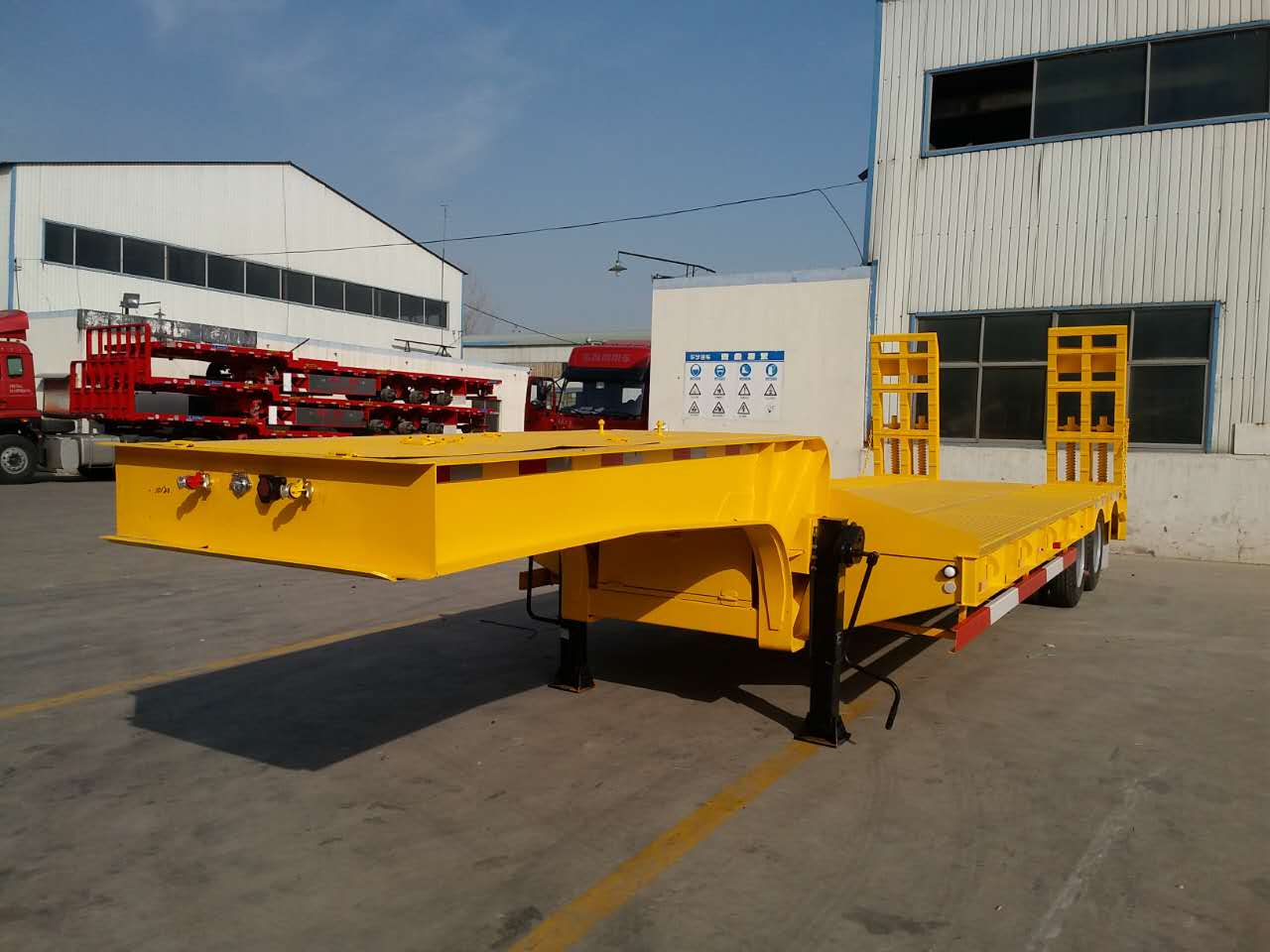

2 Axle Low Bed Trailer Specification:
The low bed is made of high-tensile steel material, scientific frame structure for tough handling and superior carrying capacity, quality stable spare parts. High performance for your heavy duty transportation. customized by your requirement is acceptable fore special usage requirement.
Usage: Carry heavy duty Equipment/ Machinery/ Bulk cargo/ Container
Dimension: 13000mm*2500*1000mm( Dimension can be customized according to the transportation goods)
Main Frame: High tensile low carton alloy Q235/Q345B steel. 500mm main I beam design, top plate 18mm, bottom plate 20mm, middle plate 10mm,side beam 250mm.
The I beam is welding by automotive Arc-submerge machine.
Axle:2 Axles (Fuwa, BPW, China standard brand for your choice) 12T/13T OR 16t
Axles quantity can be customized by your requirement.
Loading capacity: 40000kg-65000kg
Kingpin: The word first line brand JOST bolt-in/welded type, 3.5”(#90) or 2”(#50)
Landing Gear: JOST/China standard manual operation
Tire size: 11.00R20, 11R22.5, 12R22.5, 315/80R22.5, 385/65R22.5
Rim: steel or alloy 8.25*22.5, 9.00*22.5, 11.75*22.5
Suspension:Germany type leafs spring/Airbag suspension.
Brake System: Dual line with WABCO brand emeregncy relay valve, T30/30 air chamber, 45L air tank
Electric system: 24V or 12V LED lights
Painting:S.A.2.5 stand sandblasting deal with surface. Two coat of anti-corrosion prime,one coat of finish painting.
Accessory: 1 set of standard tools, tool box, spare tire carrier
Customize the trailer by your requirement is acceptable
